PlantUML gallery

Home

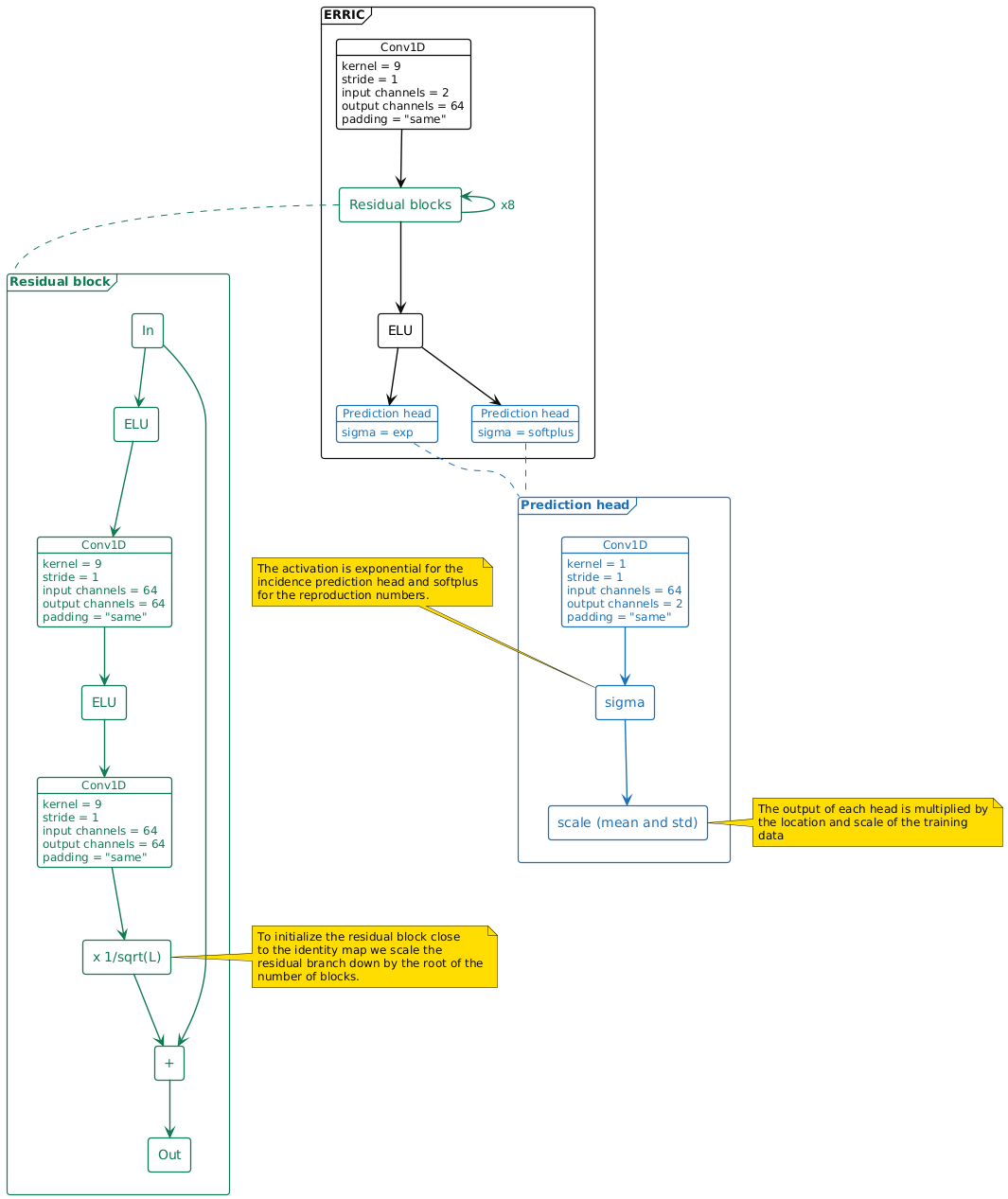

Figure 1

@startuml
allowmixing

<style>

:root {
    --text: #0b0c0c;
    --line: #0b0c0c;
    --brand: #1d70b8;
    --success: #0f7a52;
    --surface-border: #8eb8dc;
    --surface-background: #f4f8fb;
    --main-background: #ffffff;
    --focus: #ffdd00;
    --error: #ca3535;
}

document {
  BackGroundColor var(--main-background);
}

arrow {
  LineColor var(--line);
  LineThickness 1.4
}

frame {
  BackGroundColor: var(--main-background);
  LineColor: var(--line);
  LineThickness 1.2
  FontColor: var(--text);
  FontName "DejaVu Sans"
  FontSize 13
  RoundCorner 6
  .emph1 {
                LineColor: var(--brand);
                FontColor: var(--brand);
        }
  .emph2 {
                LineColor: var(--success);
                FontColor: var(--success);
        }
}


rectangle {
  BackGroundColor: var(--main-background);
  LineThickness 1.3
  RoundCorner 6
  .emph1 {
                LineColor: var(--brand);
                FontColor: var(--brand);
        }
  .emph2 {
                LineColor: var(--success);
                FontColor: var(--success);
        }
}

object {
  BackGroundColor: var(--main-background);
  LineColor: var(--line);
  LineThickness 1.3
  FontColor: var(--text);
  FontName "DejaVu Sans"
  FontSize 12
  RoundCorner 6
  .emph1 {
                LineColor: var(--brand);
                FontColor: var(--brand);
  }
  .emph2 {
                LineColor: var(--success);
                FontColor: var(--success);
        }
}

note {
  BackGroundColor: var(--focus);
  LineColor: var(--line);
  FontColor: var(--text);
  FontName "DejaVu Sans"
  FontSize 12
}
</style>

top to bottom direction
/'
 ' left to right direction
 '/
hide stereotype

frame "ERRIC" as erric {

object "Conv1D" as cIn {
  kernel = 9
  stride = 1
  input channels = 2
  output channels = 64
  padding = "same"
}

rectangle "Residual blocks" as rb <<emph2>>

rectangle "ELU" as actOut

object "Prediction head" as pHNB <<emph1>> {
sigma = exp
}

object "Prediction head" as pHGamma <<emph1>> {
sigma = softplus
}
}



frame "Residual block" as rbDetailed <<emph2>> {
allowmixing

rectangle "In" as sp <<emph2>>
rectangle "ELU" as rbElu1 <<emph2>>
rectangle "ELU" as rbElu2 <<emph2>>
object "Conv1D" as rbConv1 <<emph2>> {
  kernel = 9
  stride = 1
  input channels = 64
  output channels = 64
  padding = "same"
}
object "Conv1D" as rbConv2 <<emph2>> {
  kernel = 9
  stride = 1
  input channels = 64
  output channels = 64
  padding = "same"
}
rectangle "+" as plus <<emph2>>
rectangle "x 1/sqrt(L)" as rbTimes <<emph2>>
rectangle "Out" as rbOut <<emph2>>



}


frame "Prediction head" as dPredHead <<emph1>> {
object "Conv1D" as cOut <<emph1>> {
  kernel = 1
  stride = 1
  input channels = 64
  output channels = 2
  padding = "same"
}

rectangle "sigma" as mFn <<emph1>>
rectangle "scale (mean and std)" as locScale <<emph1>>
}


cIn --> rb

sp -[#0f7a52]-> rbElu1
rbElu1 -[#0f7a52]-> rbConv1
rbConv1 -[#0f7a52]-> rbElu2
rbElu2 -[#0f7a52]-> rbConv2
rbConv2 -[#0f7a52]-> rbTimes
rbTimes -[#0f7a52]-> plus
sp -[#0f7a52]-> plus
plus -[#0f7a52]-> rbOut

rb --> actOut
rb <-[#0f7a52]- rb : <color:#0f7a52>x8</color>
actOut --> pHNB
actOut --> pHGamma
pHNB -- dPredHead #1d70b8;line.dashed
pHGamma -- dPredHead #1d70b8;line.dashed
cOut -[#1d70b8]-> mFn
mFn -[#1d70b8]-> locScale

rb -- rbDetailed #0f7a52;line.dashed

note right of locScale
The output of each head is multiplied by
the location and scale of the training
data
end note

note top of mFn
The activation is exponential for the
incidence prediction head and softplus
for the reproduction numbers.
end note

note right of rbTimes
To initialize the residual block close
to the identity map we scale the
residual branch down by the root of the
number of blocks.
end note

@enduml

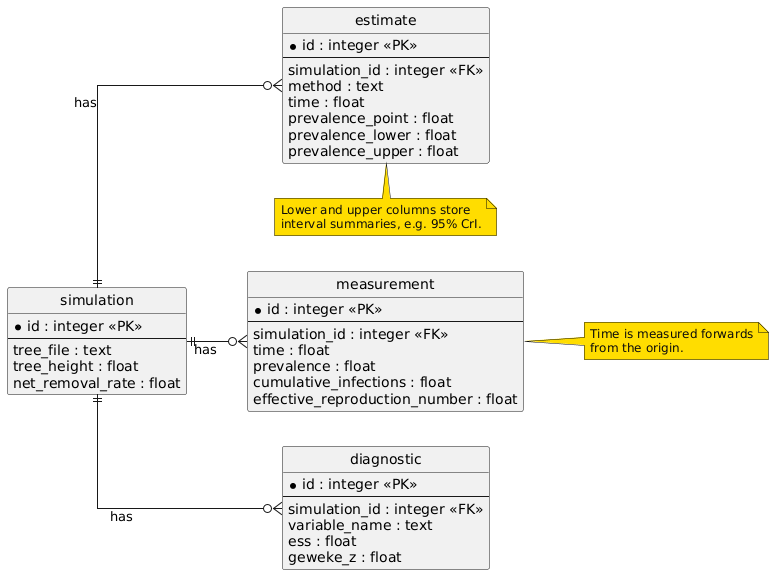

Figure 2

@startuml
<style>
:root {
  --text: #0b0c0c;
  --line: #0b0c0c;
  --surface: #f4f8fb;
  --surface-header: #dbe7f6;
  --brand: #1d70b8;
  --success: #0f7a52;
  --note: #ffdd00;
}

document {
}

note {
  BackGroundColor: var(--note);
  LineColor: var(--line);
  FontColor: var(--text);
  FontName "DejaVu Sans"
  FontSize 12
}
</style>

left to right direction
hide circle
skinparam linetype ortho
skinparam shadowing false

entity "simulation" as simulation {
  * id : integer <<PK>>
  --
  tree_file : text
  tree_height : float
  net_removal_rate : float
}

entity "measurement" as measurement {
  * id : integer <<PK>>
  --
  simulation_id : integer <<FK>>
  time : float
  prevalence : float
  cumulative_infections : float
  effective_reproduction_number : float
}

entity "estimate" as estimate {
  * id : integer <<PK>>
  --
  simulation_id : integer <<FK>>
  method : text
  time : float
  prevalence_point : float
  prevalence_lower : float
  prevalence_upper : float
}

entity "diagnostic" as diagnostic {
  * id : integer <<PK>>
  --
  simulation_id : integer <<FK>>
  variable_name : text
  ess : float
  geweke_z : float
}

simulation ||--o{ measurement : has
simulation ||--o{ estimate : has
simulation ||--o{ diagnostic : has

note right of measurement
  Time is measured forwards
  from the origin.
end note

note bottom of estimate
  Lower and upper columns store
  interval summaries, e.g. 95% CrI.
end note

@enduml

Figure 3

@startuml
allowmixing

top to bottom direction

skinparam shadowing false
skinparam backgroundColor white
skinparam ArrowColor black
skinparam nodesep 35
skinparam ranksep 35
hide stereotype

<style>
.constant {
    BackgroundColor white
    LineColor black
}

.stochastic {
    BackgroundColor white
    LineColor black
}

.deterministic {
    BackgroundColor white
    LineColor black
    LineStyle 5-5
}

.observed {
    BackgroundColor lightgray
    LineColor lightgray
}
</style>

usecase "theta" as theta <<constant>>


rectangle "i = 1, ..., n" as plate {

rectangle "foobar_i" as ppp <<constant>>
usecase "d_i" as ddd <<deterministic>>

usecase "z_i" as z_i <<stochastic>>
usecase "x_i" as x_i <<stochastic>>
rectangle "y_i" as y_i <<observed>>

z_i --> x_i
x_i --> y_i

}


theta --> z_i
ddd --> y_i
ppp --> ddd

@enduml

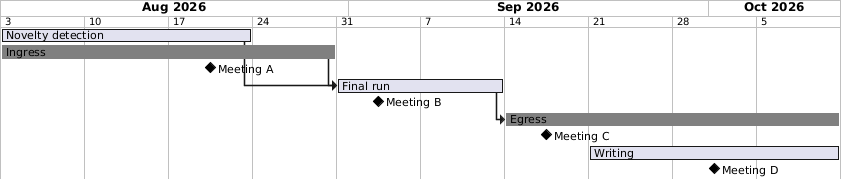

Figure 4

@startgantt

Project starts 2026-08-03

[Novelty detection] starts 2026-08-03
[Novelty detection] lasts 3 weeks

[Ingress] starts 2026-08-03
[Ingress] lasts 4 weeks
[Ingress] is colored in Gray

[Meeting A] happens 2026-08-20

[Final run] starts 2026-08-31
[Final run] lasts 2 weeks

[Meeting B] happens 2026-09-03

[Egress] starts 2026-09-14
[Egress] lasts 4 weeks
[Egress] is colored in Gray

[Meeting C] happens 2026-09-17

[Writing] starts 2026-09-21
[Writing] lasts 3 weeks

[Meeting D] happens 2026-10-01

[Novelty detection] --> [Final run]
[Ingress] --> [Final run]
[Final run] --> [Egress]


hide footbox
printscale weekly with calendar date zoom 3

@endgantt

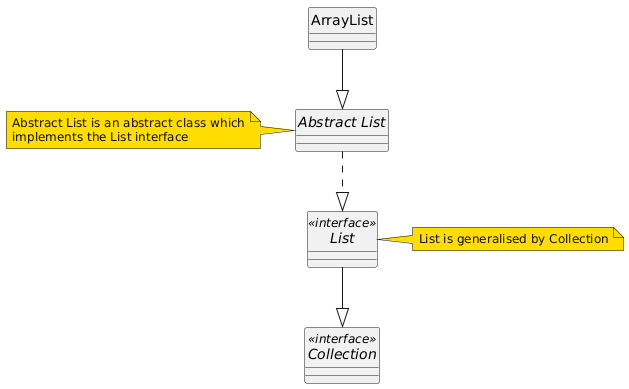

Figure 5

@startuml
<style>
:root {
  --text: #0b0c0c;
  --line: #0b0c0c;
  --brand: #1d70b8;
  --success: #0f7a52;
  --note: #ffdd00;
}

document {
}

note {
  BackGroundColor: var(--note);
  LineColor: var(--line);
  FontColor: var(--text);
  FontName "DejaVu Sans"
  FontSize 12
}
</style>

top to bottom direction
hide circle
skinparam linetype ortho
skinparam shadowing false

interface "Collection" as coll <<interface>>
interface "List" as list <<interface>>
abstract class "Abstract List" as absList
class "ArrayList" as arrList

list --|> coll
absList ..|> list
arrList --|> absList

note right of list
List is generalised by Collection
end note

note left of absList
Abstract List is an abstract class which
implements the List interface
end note

@enduml

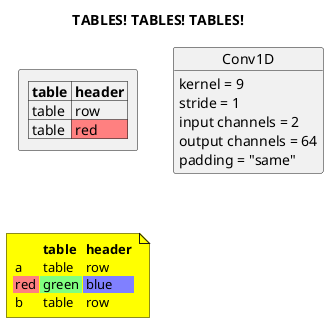

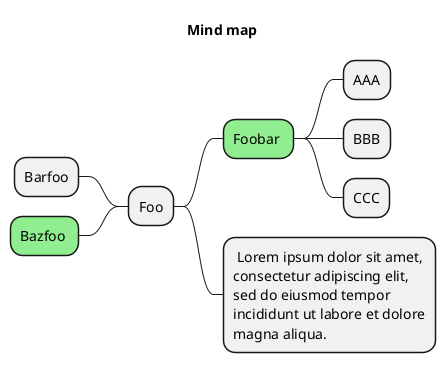

Author: Alexander E. Zarebski

Created: 2026-09-06 Sun 23:17
